PURGER I™ with pencil brush

The Purger I™ with Pencil Brush Series pig is a tough, all urethane pipeline pig that requires absolutely no maintenance and is an excellent pig for product evacuation and aggressive cleaning. The Purger I™ with Pencil Brush comes standard with a solid core.

Its multi-disc design ensures that sealing elements are centered in the pipeline, resulting in consistent wear over time.

Designed to negotiate 1.5D or greater bends.

Durometer Banner Apache Pipeline Products

Features & Benefits

Options Available

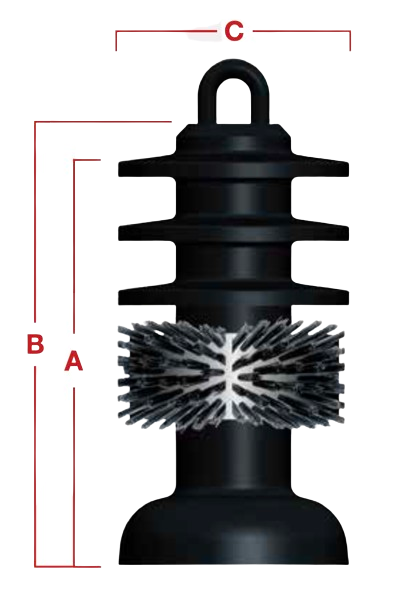

SIZE A B C Part Number
3" 6.750 7.500 3.375 61-0172-03S
4" 7.500 8.250 4.375 61-0172-04S
6" 11.500 13.250 6.375 61-0172-06S
8" 15.250 17.000 8.500 61-0172-08S
10" 17.500 19.750 10.625 61-0172-10S
12" 20.500 23.000 12.500 61-0172-12S

DOCUMENT DOWNLOADS

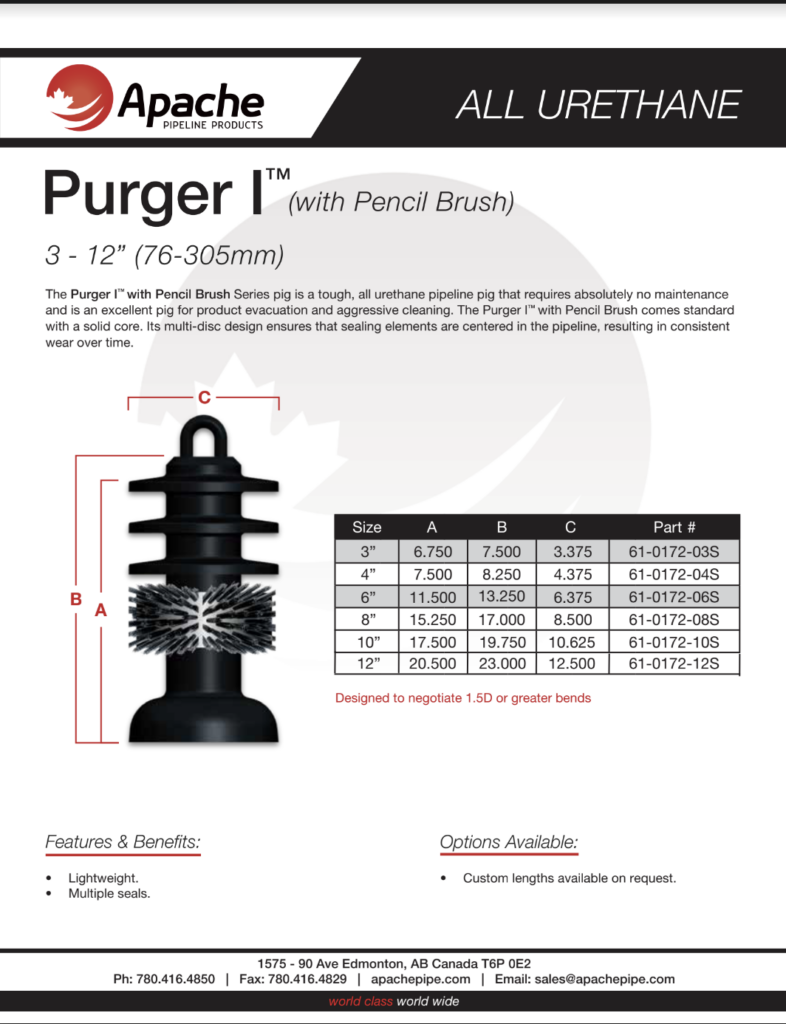

Purger 1 with pencil brush thumbnail
PURGER I™ with Pencil Brush
