pigPRO™ Series 67

Visual Indication, Manual Reset Can Be Serviced on Flowing, Pressurized Pipelines

The Series 67 is a visual flag indicator with manual reset and comes standard with an isolation ball valve.

The Series 67 adds safety and servicing options to our existing line intrusive pig passage indicators. Like other available models in the patented pigPRO™ Series, it reliably detects the precise location of a cleaning pig as it travels within the pipeline network. When a pig passes the intruding plunger, it activates the plunger and triggers a visual flag indicator, signalling the pig’s location.

Features & Benefits

  • The integral isolation feature of the Model 67 means the cost, time and safety concerns of de-pressurizing and draining a line are eliminated. Now the pig passage indicator can be isolated, removed, repaired and reinstalled while the pipeline is flowing and pressurized. Preventative maintenance, inspection or repair are easily accomplished without specialized equipment or crews.

Extension Pole

  • Aluminum extensions can be attached to enable detection of the pigs passage on buried pipelines. All pressure sealing components, including the isolation ball valve, remain below the extension module. Available in lengths of 2’ to 10’.
pigPRO-Series-67 pipeline pig apache pipeline products

Incorporating a customized ball valve with an extended lower housing into the design of our Series 67 pigPRO™ allows for a safe and simple isolation of the pig passage indicator from pipeline pressure for inspection, maintenance or repair. Complete removal and re-installation on  any pressurized line is easy using the Extraction Kit and does not require specialized hot tap professionals or equipment. The extraction kit contains a pressure relief tool and a custom built extraction cap and jack tube specifically designed for the Series 67 pigPRO™. Other items include O-Rings, fasteners, lubricant and hex key wrenches. All of this is provided in a protective industrial case. *Extraction Kit sold separately*

DOCUMENT DOWNLOADS

pigPRO™ Series 67 Product Info

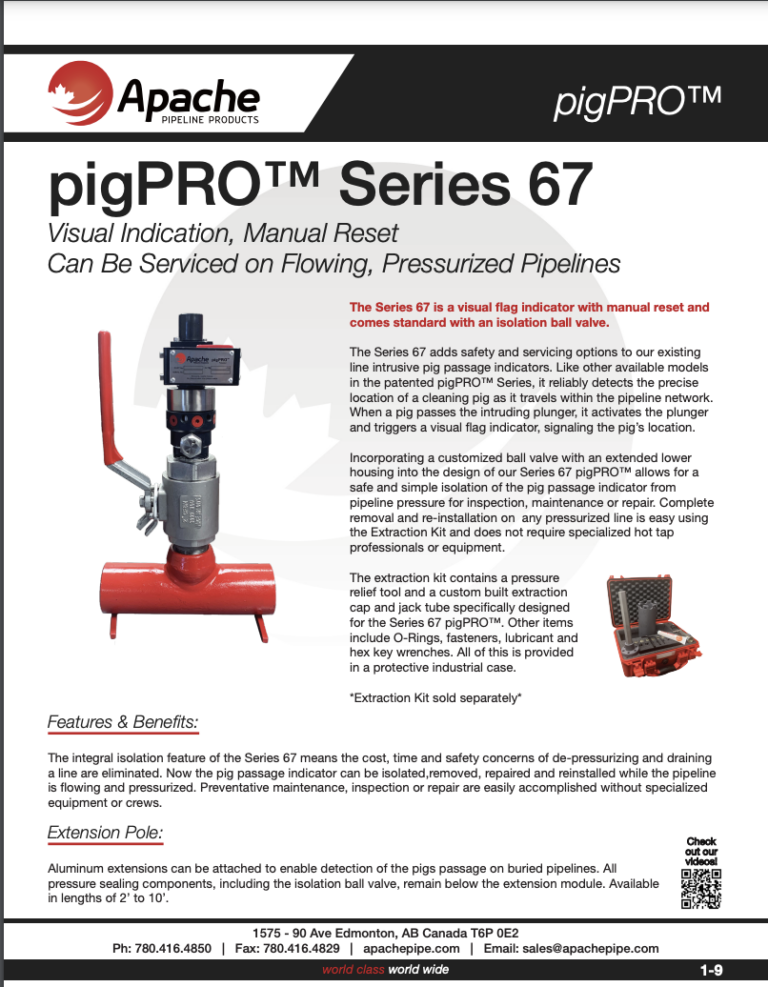

Pigpro handout series 67
pigPRO™ Series 67 Handout
