pigPRO™ Series 53

Visual/Electrical Indication, Manual/Auto Reset

The Series 53 is a combination visual and electrical indicator with manual and automatic reset.

Offering both visual and electrical indicator capabilities and manual and automatic reset features, the Series 53 is the most versatile member of Apache’s pigPRO™ Series, a patented line of intrusive pig passage indicators that reliably detect the precise location of a cleaning pig. When a cleaning pig passes the system’s intruding plunger, it activates the plunger and triggers a visual flag indicator, signalling the pig’s location.

The Series 53 includes a thread mounting nipple, standard lower housing with fluorocarbon O-Rings, hemispherical plunger with a flag assembly and weather sealed & explosion proof limit switch. The switch employed on this model is NEMA rated, UL listed and CSA certified to suit most applications.

Features & Benefits

Options Available

pigPRO-Series-53 pipeline pig apache pipeline products

Extension Pole

Aluminum extensions can be attached to enable detection of the pigs passage on buried pipelines. All pressure sealing components remain below the extension module. Available in lengths 2’ to 10’.

DOCUMENT DOWNLOADS

pigpro series 53

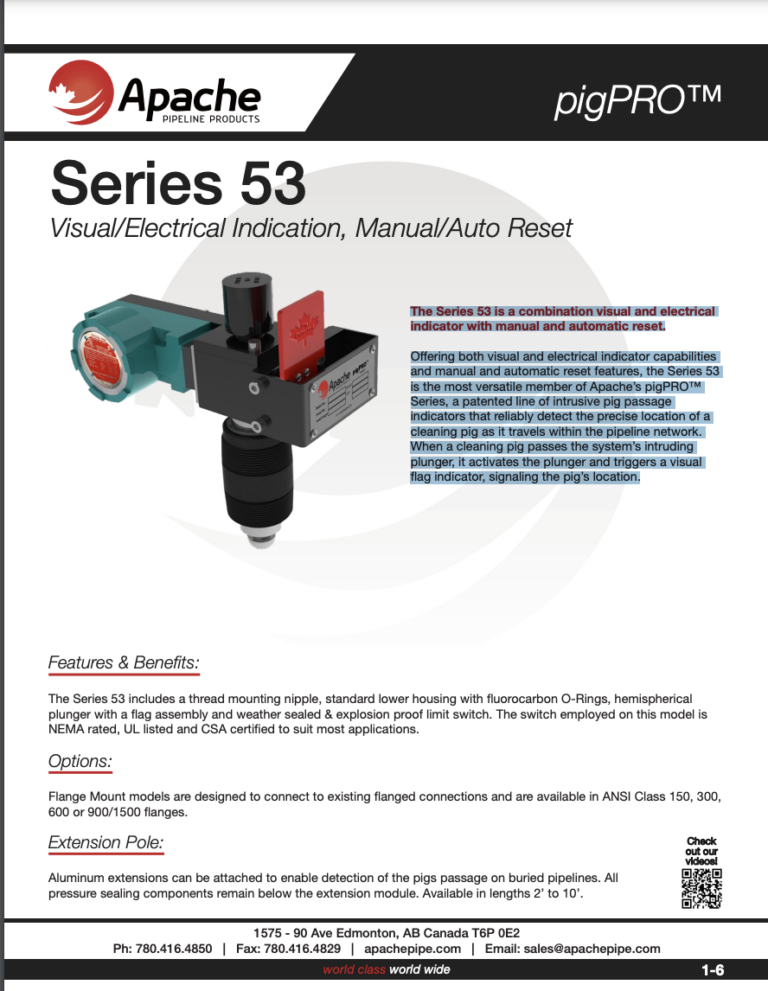

pigPRO™ Series 53 Product Info

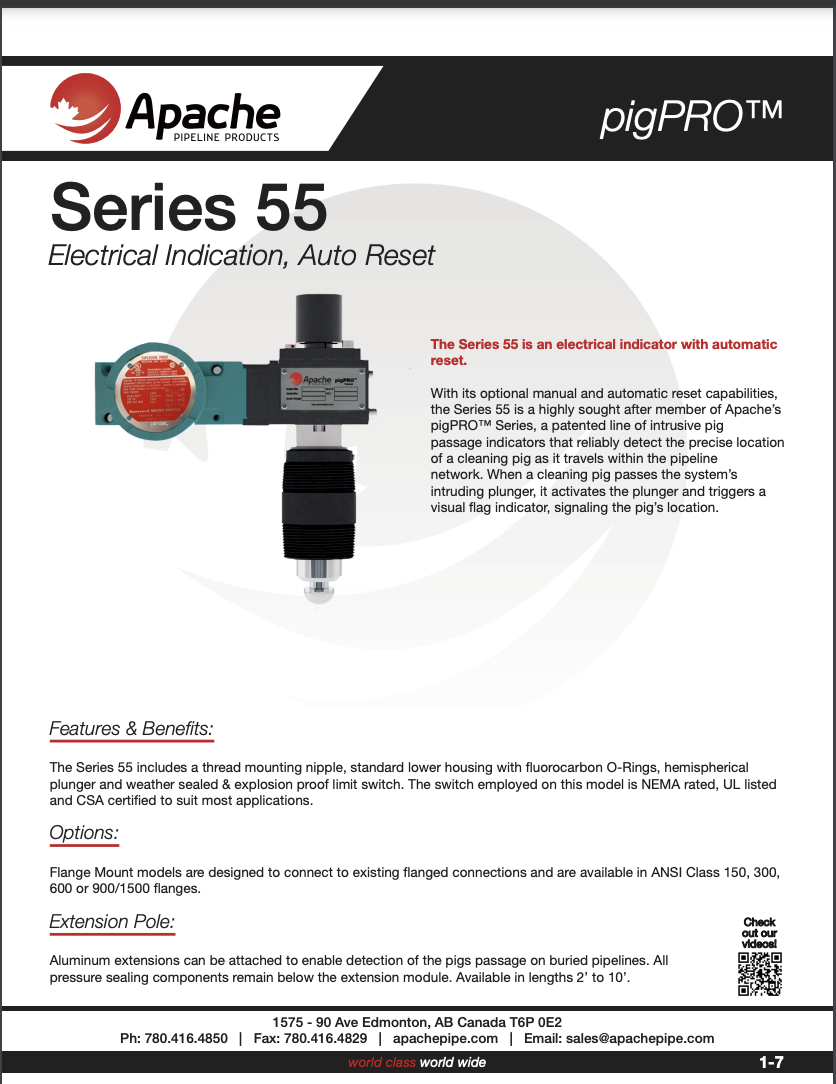

pigPRO™ Series 53 55 57 Handout
Pig Passage Indicator Catalogue
pigpro-datasheet_Page_1 pipeline pig apache pipeline products
pigPRO Data Sheet

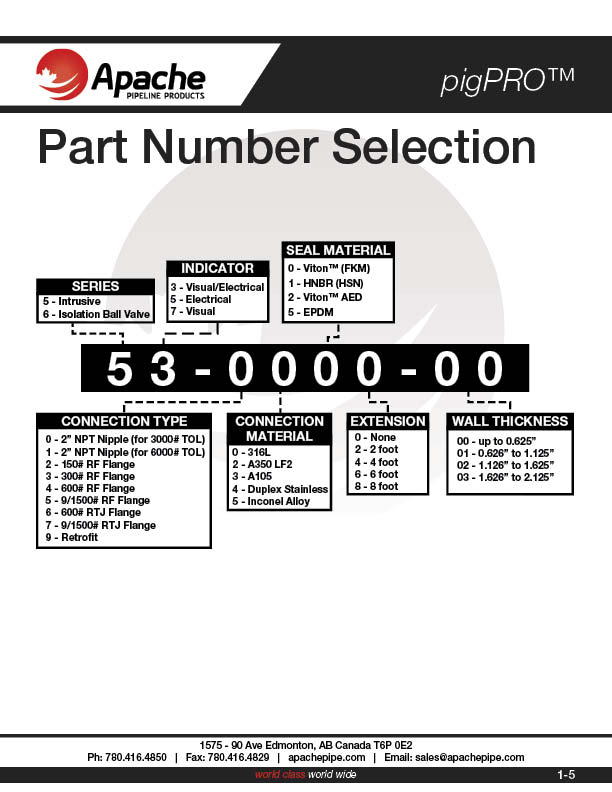

pigPRO Part Number Selection
gen_pigpro_installguide-thumbnail pipeline pig apache pipeline products

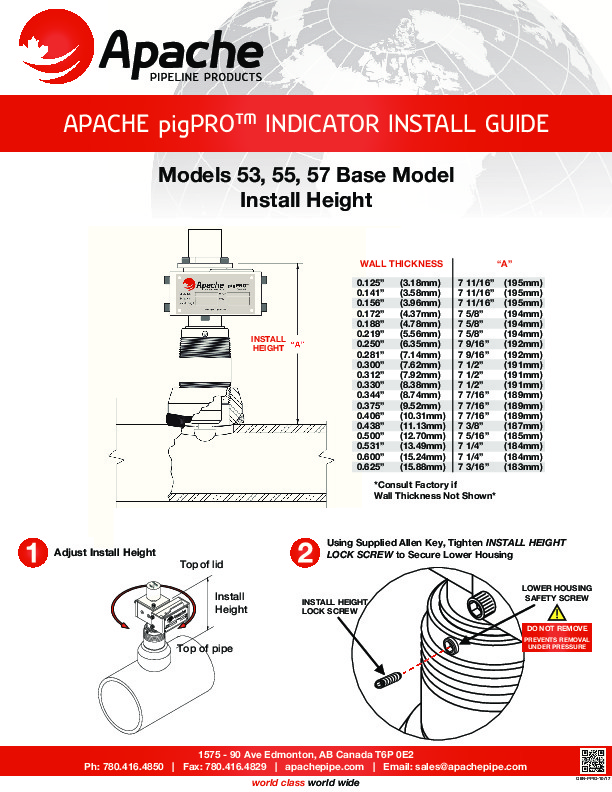

pigPRO Base Model Install Guide
gen_pigpro-flange_installguide-thumbnail pipeline pig apache pipeline products

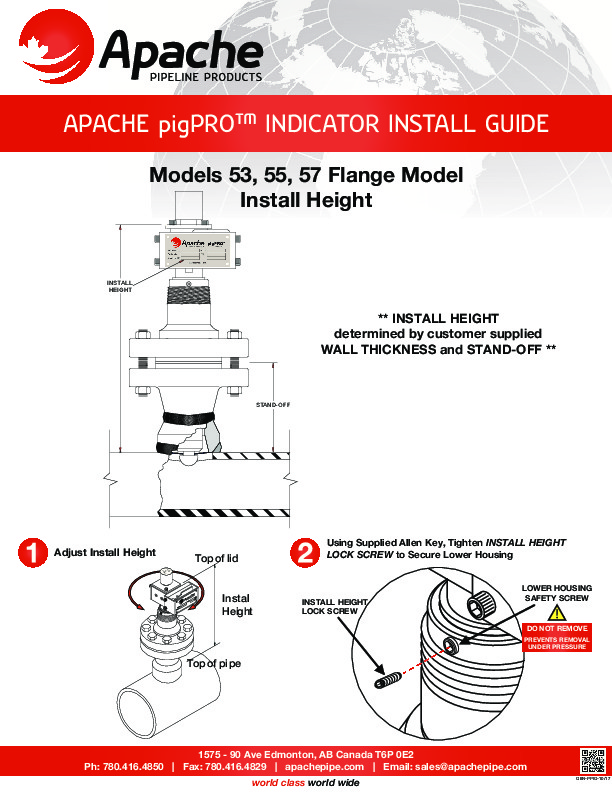

pigPRO Flange Model Install Guide
pigpro_55_spanish-thumbnail pipeline pig apache pipeline products

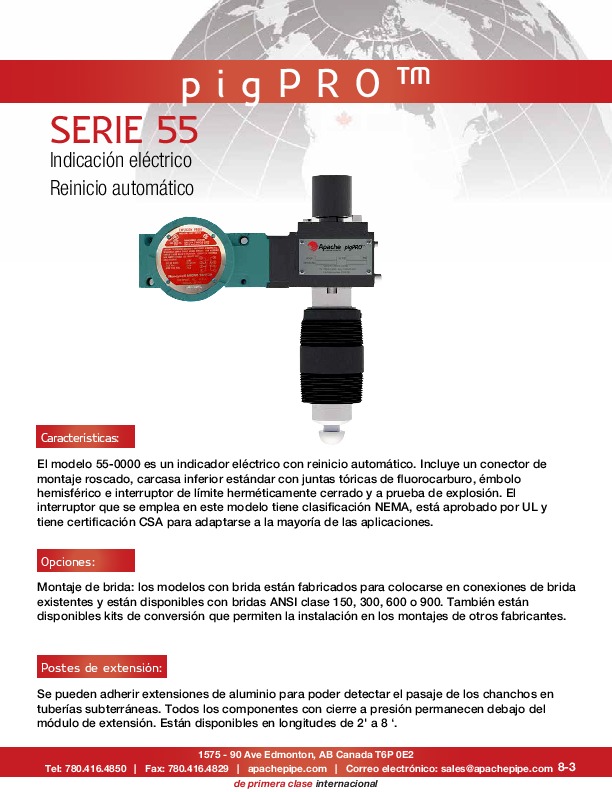

pigPRO Serie 55 Español
