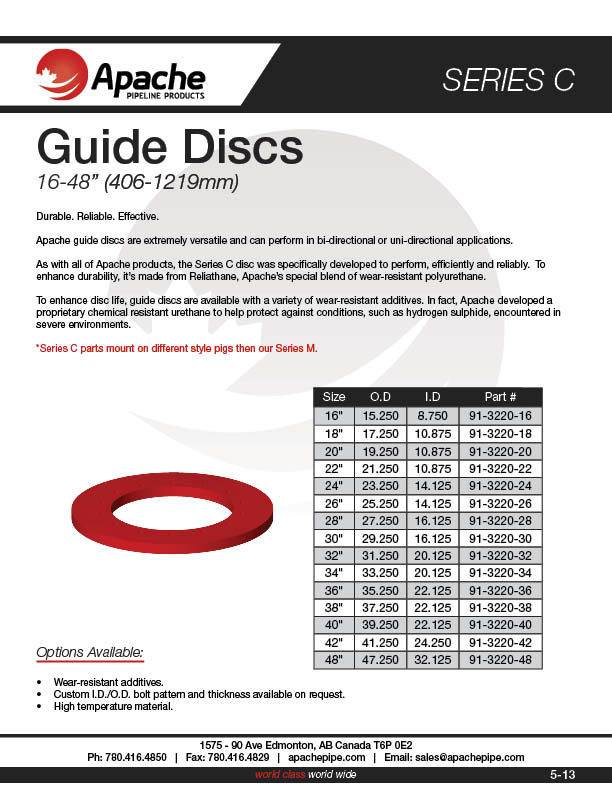

C: GUIDE DISCS
(16-48″)
Durable. Reliable. Effective.
Apache guide discs are extremely versatile and can perform in bi-directional or uni-directional applications.
As with all of Apache products, the Series C disc was specifically developed to perform, efficiently and reliably. To
enhance durability, it’s made from Reliathane, Apache’s special blend of wear-resistant polyurethane.
To enhance disc life, guide discs are available with a variety of wear-resistant additives. In fact, Apache developed a
proprietary chemical resistant urethane to help protect against conditions, such as hydrogen sulphide, encountered
in severe environments.
*Series C parts mount on different style pigs then our Series M.
| SIZE | O.D. | I.D. | PART NUMBER |
|---|---|---|---|
| 16" | 15.250 | 8.750 | 91-3220-16 |
| 18" | 17.250 | 10.875 | 91-3220-18 |
| 20" | 19.250 | 10.875 | 91-3220-20 |
| 22" | 21.250 | 10.875 | 91-3220-22 |
| 24" | 23.250 | 14.125 | 91-3220-24 |
| 26" | 25.250 | 14.125 | 91-3220-26 |
| 28" | 27.250 | 16.125 | 91-3220-28 |
| 30" | 29.250 | 16.125 | 91-3220-30 |
| 32" | 31.250 | 20.125 | 91-3220-32 |
| 34" | 33.250 | 20.125 | 91-3220-34 |
| 36" | 35.250 | 22.125 | 91-3220-36 |
| 38" | 37.250 | 22.125 | 91-3220-38 |
| 40" | 39.250 | 22.125 | 91-3220-40 |
| 42" | 41.250 | 24.250 | 91-3220-42 |
| 48" | 47.250 | 32.125 | 91-3220-48 |
Options Available:
- Wear-resistant additives.
- Custom I.D./O.D. bolt pattern and thickness available on request.
- High temperature material.
