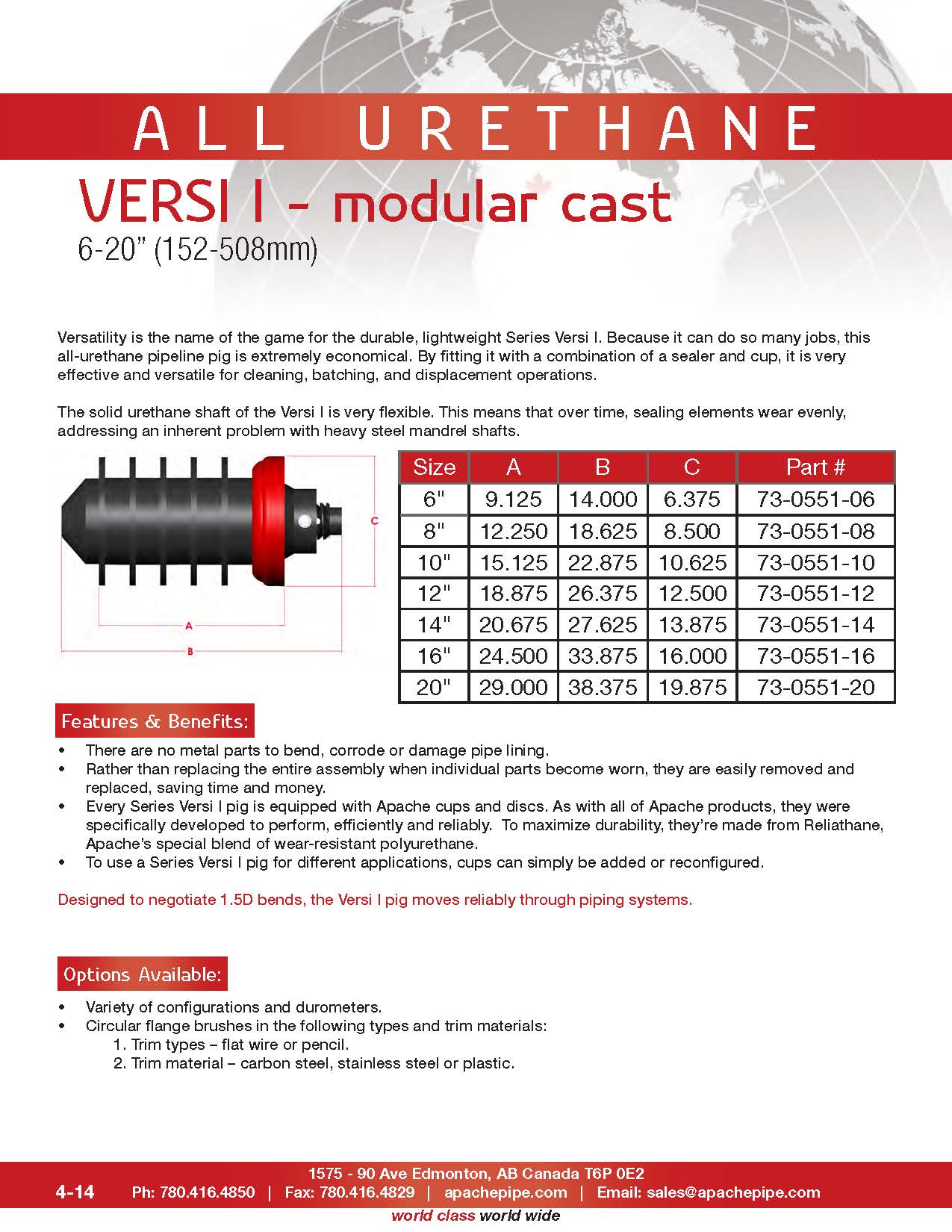

VERSI I (6-20″)
Versatility is the name of the game for the durable, lightweight Series Versi I. Because it can do so many jobs, this all-urethane pipeline pig is extremely economical. By fitting it with a combination of a sealer and cup, it is very effective and versatile for cleaning, batching, and displacement operations. The solid urethane shaft of the Versi I is very flexible. This means that over time, sealing elements wear evenly, addressing an inherent problem with heavy steel mandrel shafts.
Designed to negotiate 1.5D bends, the Versi I pig moves reliably through piping systems.
| SIZE | A | B | C | PART NUMBER |
|---|---|---|---|---|
| 6" | 9.125 | 14.000 | 6.375 | 73-0551-06 |
| 8" | 12.250 | 18.625 | 8.500 | 73-0551-08 |
| 10" | 15.125 | 22.875 | 10.625 | 73-0551-10 |
| 12" | 18.875 | 26.375 | 12.500 | 73-0551-12 |
| 14" | 20.675 | 27.625 | 13.875 | 73-0551-14 |
| 16" | 24.500 | 33.875 | 16.000 | 73-0551-16 |
| 20" | 29.000 | 38.375 | 19.875 | 73-0551-20 |
Features & Benefits:
- There are no metal parts to bend, corrode or damage pipe lining.
- Rather than replacing the entire assembly when individual parts become worn, they are easily removed and replaced, saving time and money.
- Every Series Versi I pig is equipped with Apache cups and discs. As with all of Apache products, they were specifically developed to perform, efficiently and reliably. To maximize durability, they’re made from Reliathane, Apache’s special blend of wear-resistant polyurethane.
- To use a Series Versi I pig for different applications, cups can simply be added or reconfigured.
Options Available:
- Variety of configurations and durometers.
- Circular flange brushes in the following types and trim materials:
1. Trim types – flat wire or pencil.
2. Trim material – carbon steel, stainless steel or plastic.
