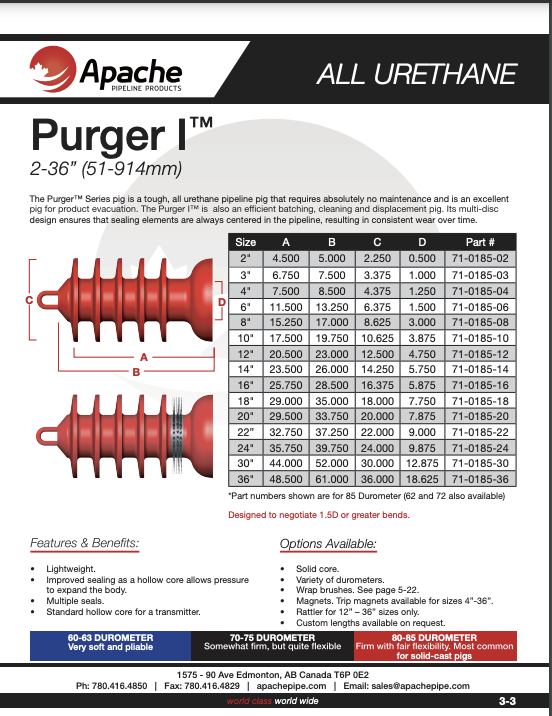

The Purger™ Series pig is a tough, all urethane pipeline pig that requires absolutely no maintenance and is an excellent pig for product evacuation. The Purger I™ is also an efficient batching, cleaning and displacement pig. Its multi-disc design ensures that sealing elements are always centered in the pipeline, resulting in consistent wear over time.
Designed to negotiate 1.5D or greater bends.
SIZE | A | B | C | D | Part Number |
2" | 4.500 | 5.000 | 2.250 | 0.500 | 71-0185-02 |
3" | 6.750 | 7.500 | 3.375 | 1.000 | 71-0185-03 |
4" | 7.500 | 8.500 | 4.375 | 1.250 | 71-0185-04 |
6" | 11.500 | 13.250 | 6.375 | 1.500 | 71-0185-06 |
8" | 15.250 | 17.000 | 8.625 | 3.000 | 71-0185-08 |
10" | 17.500 | 19.750 | 10.625 | 3.875 | 71-0185-10 |
12" | 20.500 | 23.000 | 12.500 | 4.750 | 71-0185-12 |
14" | 23.500 | 26.000 | 14.250 | 5.750 | 71-0185-14 |
16" | 25.750 | 28.500 | 16.375 | 6.750 | 71-0185-16 |
18" | 29.000 | 35.000 | 18.000 | 7.750 | 71-0185-18 |
20" | 29.500 | 33.750 | 20.000 | 7.875 | 71-0185-20 |
22" | 32.750 | 37.250 | 22.000 | 9.000 | 71-0185-22 |
24" | 35.75 | 39.75 | 24.0 | 9.875 | 71-0185-24 |
30" | 44.00 | 52.00 | 30.0 | 12.875 | 71-0185-30 |
36" | 48.50 | 61.00 | 36.0 | 18.625 | 71-0185-36 |
