PURGER II™ with pencil brush

The Purger II™ with pencil brush with Pencil Brush Series pig is a tough, all urethane pipeline pig that requires absolutely no maintenance and is an excellent pig for product evacuation and aggressive cleaning. The Purger II with Pencil Brush comes standard with a solid core. Its multi-disc design ensures that sealing elements are centered in the pipeline, resulting in consistent wear over time.

Designed to negotiate 1.5D or greater bends.

Durometer Banner Apache Pipeline Products

Features & Benefits

Options Available

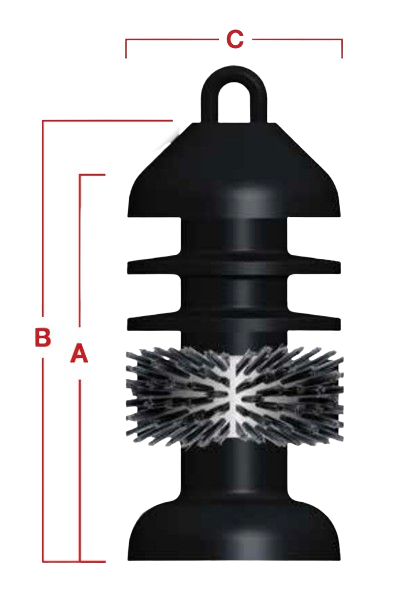

purger 2 diagram

SIZE A B C Part Number
3" 6.750 8.375 3.375 61-0272-03S
4" 7.500 9.500 4.375 61-0272-04S
6" 11.500 15.000 6.375 61-0272-06S
8" 15.500 19.250 8.500 61-0272-08S
10" 18.250 22.000 10.625 61-0272-10S
12" 22.000 26.500 12.500 61-0272-12S
